SBM-36HRFN1-MX7(GA)
Description

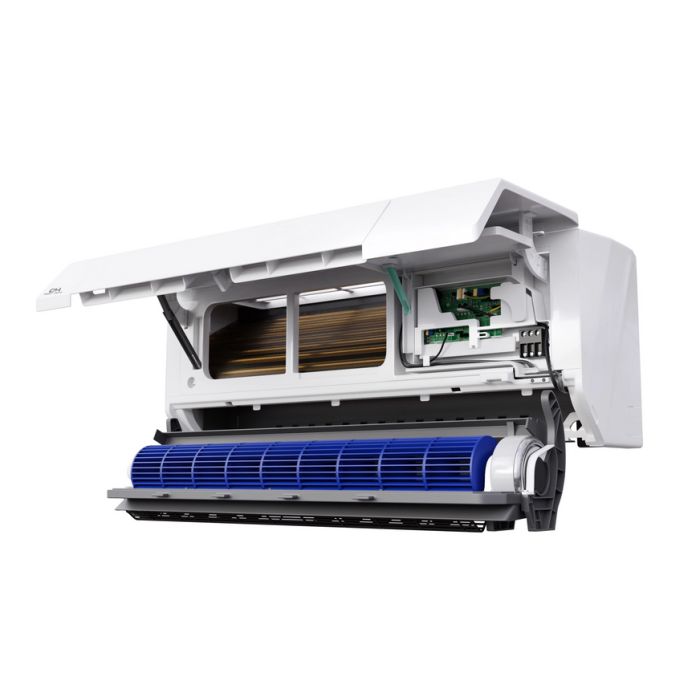

The Platinum series from Simply The Best Minisplit offers high-end features in their indoor wall-mounted mini split units. With an innovative design, these units are engineered for easy disassembly, featuring a removable blower wheel, front E-Box, PCB, and a convenient kickstand on the front cover panel. The series is designed for enhanced airflow, thanks to a larger inlet and outlet, along with auto-swinging vertical and horizontal louvers. These units are compatible with remote control or smart devices via the Smart Home App. Available in a range of capacities (9K, 12K, 18K, 24K, 30K, and 36K Btu/h), the Platinum series can be paired with Regular or Hyper Heat Pump Outdoor Units, offering up to a 28.1 SEER2 rating for superior energy efficiency.
Standard Features
LED display
Louver memory
Automatic operation
Self-diagnosis
Auto swing
Goldfin coating
Inverter technology
Smart KIT Ready
Multiple fan speeds
Sleep mode
Timer
Auto-restart function
More Information
| System Type | Single/Multi-zone unit |
|---|---|
| Operation Range - Heating | 32～86 |
| Operation Range - Cooling | 60～90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 47.5/42/35.5 |
| Indoor Air Flow | 842.94/639.41/505.88/382.35 |
| Drainage water pipe diameter | 5/8" |
| Max. pipe length (ft) | 2 |
| Unit dimensions (W*H*D) | 44.88x10.83x14.57 |
| Unit Net/Gross weight | 43.65/54.89 |
| SEER2 | 20 |
| SEER2 | 20 |
| Dehumidification value (pnt/day) | 12.26 |
| Refrigerant type | R410A |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 48.43x17.91x13.98 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 3/8"/5/8" |
| EER2 | 8.5 |
| Filter dimensions (WxD) (inch) | 2.3 |
| BTU Rated | 36,000 |
| Power source | 208-230V, 1Ph, 60Hz |
